Workflow
Structure

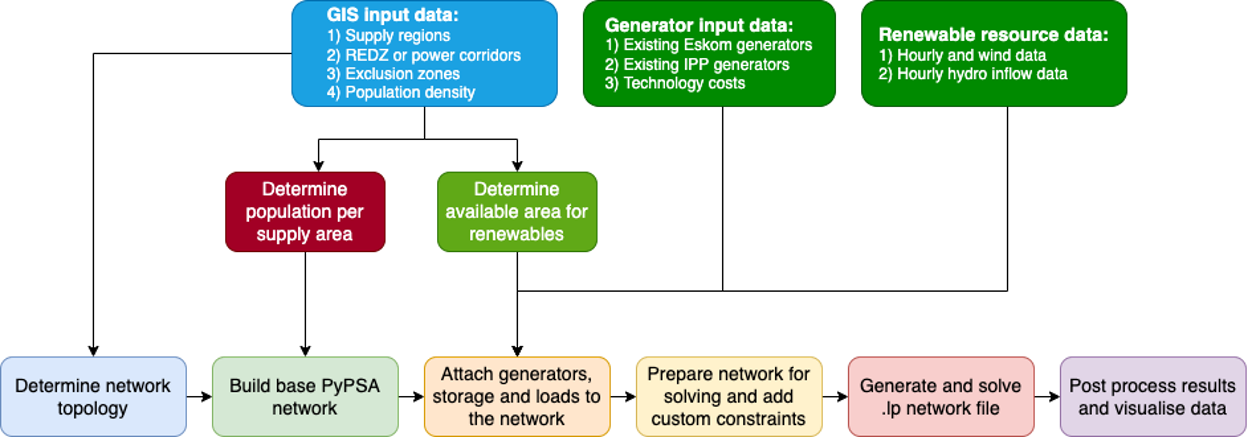

The main workflow structure of PyPSA-ZA is as follows:
1. Input data: The input data includes GIS data, generator data, and data on renewable resources. The input GIS data is included with the model and may be found in the ‘data/bundle/’ folder. The generator data is loaded into the model through the model file.xlsx found in the root directory, which comprises information on current Eskom generators, existing Independent Power Producer (IPP) generators, and the corresponding technology costs. The model constraints on annual new build limits are also given in model file.xlsx.
- 2. Populate data: data is then processed by means of specific methods to derive the
main input data of the optimization methods, such as renewable energy production, demand, coal fleet EAF etc. Using the tool `Atlite https://github.com/PyPSA/atlite/>`_, renewable energy resource potential is translated into time series for either the redz or corridors when the option is enabled.
3. Create network model: once the necessary model inputs are drawn, then the network model is developed using PyPSA
4. Solve network: execute the optimization for the desired problem, e.g. dispatch, planning, etc.
5. Summary and plotting: once the model has been solved, produce nice summaries and plotting
The entire execution of the workflow, from point 1 to point 5, relies on the automated workflow management tool Snakemake that iterates the execution of so-called “rules” in an organized way following the input-output chain.
Snakemake
The generation of the model is controlled by the workflow management system Snakemake. In a nutshell,
the Snakefile declares for each python script in the scripts directory a rule which describes which files the scripts consume and
produce (their corresponding input and output files). The snakemake tool then runs the scripts in the correct order according to the
rules’ input/output dependencies. Moreover, it is able to track, what parts of the workflow have to be regenerated, when a data file or a
script is modified/updated. For example, by executing the following snakemake routine
.../pypsa-za % snakemake -j results/networks/solved_CSIR-ambitions_9-supply_redz_lcopt_LC-1H.nc
the following workflow is automatically executed.

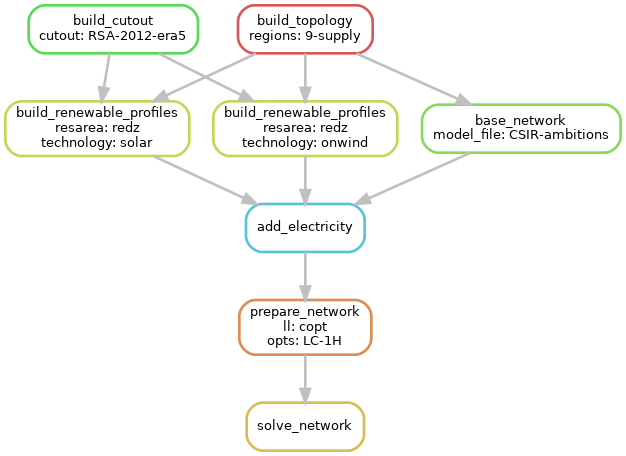

The blocks represent the individual rules which are required to create the file results/networks/solved_CSIR-ambitions_9-supply_redz_lcopt_LC-1H.nc.
Each rule requires scripts (e.g. Python) to convert inputs to outputs.
The arrows indicate the outputs from preceding rules which a particular rule takes as input data.
Note
For reproducibility purposes, the image can be obtained through
snakemake --dag results/networks/solved_CSIR-ambitions_9-supply_redz_lcopt_LC-1H.nc | dot -Tpng -o workflow.png
using Graphviz
Customize the scenario excel input file
In order to make the PyPSA-ZA model accessible to a larger audience than just developers and users who do not know Python, the input data into PyPSA-ZA is entered via an Excel spreadsheet to aid with scenario configuration. The excel spreadsheet model_file.xlsx is located in the root directory and consists of the following sheets:
model_setup: Summarizes the capacity from eskom and non-eskom generators, new build limits, projections on annual demand,
coal fleat Energy Availability Factor (EAF) and reserves(total and fast)
existing_eskom: Gives the capacity of conventional and non-conventional Eskom generators, decommissioning rates,
Scenario |
Power Station Name |
Carrier |
Type |
Status |
Capacity (MW) |
Unit size (MW) |
Number units |
Future Commissioning Date |
Decommissioning Date |
Heat Rate (GJ/MWh) |
Fuel Price (R/GJ) |
Max Ramp Up (MW/min) |
Max Ramp Down (MW/min) |
Min Stable Level (%) |
Variable O&M Cost (R/MWh) |
Fixed O&M Cost (R/kW/yr) |
Pump Efficiency (%) |
Pump Units |
Pump Load per unit (MW) |
Pumped Storage - Max Storage (GWh) |
CSP Storage (hours) |
Diesel Storage (Ml) |
Gas storage (MCM) |
GPS Latitude |
GPS Longitude |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
base |
Arnot* |
coal |
Generator |
Existing |
1116 |
372 |
3 |
2027 |
13.397 |
25.9 |
2.1 |
2.1 |
30% |
98 |
1133 |
-25.94444 |
29.79166 |
||||||||
base |
Arnot** |
coal |
Generator |
Existing |
1116 |
372 |
3 |
2030 |
13.397 |
25.9 |
2.1 |
2.1 |
30% |
98 |
1133 |
0 |
0 |
-25.94444 |
29.79166 |
||||||
base |
Camden* |
coal |
Generator |
Existing |
740 |
370 |
2 |
2022 |
14 |
32 |
1 |
1 |
30% |
98 |
1133 |
-26.62007 |
30.09113 |
||||||||
base |
Camden** |
coal |
Generator |
Existing |
370 |
370 |
1 |
2024 |
14 |
32 |
1 |
1 |
30% |
98 |
1133 |
-26.62007 |
30.09113 |
||||||||
base |
Duvha* |
coal |
Generator |
Existing |
1150 |
575 |
2 |
2032 |
12.685 |
18 |
3.3 |
3.3 |
30% |
98 |
1133 |
-25.95954 |
29.34094 |
||||||||
base |
Duvha** |
coal |
Generator |
Existing |
1725 |
575 |
3 |
2035 |
12.685 |
18 |
3.3 |
3.3 |
30% |
98 |
1133 |
0 |
0 |
-25.95954 |
29.34094 |
||||||
base |
Grootvlei* |
coal |
Generator |
Existing |
286 |
143 |
2 |
2019 |
14.497 |
29.8 |
0.9 |
0.9 |
30% |
98 |
1133 |
-26.76955 |
28.49951 |
||||||||
base |
Grootvlei** |
coal |
Generator |
Existing |
286 |
143 |
2 |
2020 |
14.497 |
29.8 |
0.9 |
0.9 |
30% |
98 |
1133 |
0 |
0 |
-26.76955 |
28.49951 |
||||||
base |
Hendrina* |
coal |
Generator |
Existing |
440 |
110 |
4 |
2021 |
13.946 |
28.7 |
1.1 |
1.1 |
30% |
98 |
1133 |
-26.03138 |
29.60138 |
||||||||
base |
Hendrina** |
coal |
Generator |
Existing |
440 |
110 |
4 |
2023 |
13.946 |
28.7 |
1.1 |
1.1 |
30% |
98 |
1133 |
0 |
0 |
-26.03138 |
29.60138 |
||||||
base |
Kendal* |
coal |
Generator |
Existing |
1920 |
640 |
3 |
2041 |
12.385 |
24.3 |
1.8 |
1.8 |
30% |
98 |
1133 |
-26.08805 |
28.96888 |
||||||||
base |
Kendal** |
coal |
Generator |
Existing |
1920 |
640 |
3 |
2044 |
12.385 |
24.3 |
1.8 |
1.8 |
30% |
98 |
1133 |
0 |
0 |
-26.08805 |
28.96888 |
||||||
base |
Komati |
coal |
Generator |
Existing |
114 |
114 |
1 |
2022 |
15.898 |
34.7 |
0.5 |
0.5 |
30% |
98 |
1133 |
-26.09078 |
29.47446 |
||||||||
base |
Kriel* |
coal |
Generator |
Existing |
1425 |
475 |
3 |
2024 |
12.925 |
28.6 |
3.6 |
3.6 |
30% |
98 |
1133 |
-26.25404 |
29.18008 |
||||||||
base |
Kriel** |
coal |
Generator |
Existing |
1425 |
475 |
3 |
2028 |
12.925 |
28.6 |
3.6 |
3.6 |
30% |
98 |
1133 |
0 |
0 |
-26.25404 |
29.18008 |
||||||
base |
Kusile* |
coal |
Generator |
Existing |
2880 |
720 |
4 |
beyond 2050 |
9.812 |
31.6 |
7.2 |
7.2 |
30% |
98 |
1133 |
-25.5459 |
28.5502 |
||||||||
base |
Kusile** |
coal |
Generator |
Existing |
720 |
720 |
1 |
2023 |
beyond 2050 |
9.812 |
31.6 |
7.2 |
7.2 |
30% |
98 |
1133 |
0 |
0 |
-25.5459 |
28.5502 |
|||||
base |
Kusile*** |
coal |
Generator |
Existing |
720 |
720 |
1 |
2024 |
beyond 2050 |
9.812 |
31.6 |
7.2 |
7.2 |
30% |
98 |
1133 |
0 |
0 |
-25.5459 |
28.5502 |
|||||
base |
Lethabo* |
coal |
Generator |
Existing |
1779 |
593 |
3 |
2039 |
11.566 |
14.4 |
5.9 |
5.9 |
30% |
98 |
1133 |
-26.74027 |
27.975 |
||||||||
base |
Lethabo** |
coal |
Generator |
Existing |
1779 |
593 |
3 |
2042 |
11.566 |
14.4 |
5.9 |
5.9 |
30% |
98 |
1133 |
0 |
0 |
-26.74027 |
27.975 |
||||||
base |
Majuba* |
coal |
Generator |
Existing |
1833 |
611 |
3 |
2031 |
12.385 |
32.1 |
1.7 |
1.7 |
30% |
98 |
1133 |
-27.09555 |
29.77055 |
||||||||
base |
Majuba** |
coal |
Generator |
Existing |
2010 |
670 |
3 |
2050 |
11.597 |
32.1 |
1.9 |
1.9 |
30% |
98 |
1133 |
-27.09555 |
29.77055 |
||||||||
base |
Matimba* |
coal |
Generator |
Existing |
1845 |
615 |
3 |
2040 |
12.281 |
17.5 |
3 |
3 |
30% |
98 |
1133 |
-23.66777 |
27.61277 |
||||||||
base |
Matimba** |
coal |
Generator |
Existing |
1845 |
615 |
3 |
2043 |
12.281 |
17.5 |
3 |
3 |
30% |
98 |
1133 |
0 |
0 |
-23.66777 |
27.61277 |
||||||
base |
Matla* |
coal |
Generator |
Existing |
1725 |
575 |
3 |
2032 |
12.685 |
30.2 |
2.4 |
2.4 |
30% |
98 |
1133 |
-26.28036 |
29.14229 |
||||||||
base |
Matla** |
coal |
Generator |
Existing |
1725 |
575 |
3 |
2034 |
12.685 |
30.2 |
2.4 |
2.4 |
30% |
98 |
1133 |
0 |
0 |
-26.28036 |
29.14229 |
||||||
base |
Medupi* |
coal |
Generator |
Existing |
3615 |
723 |
5 |
beyond 2050 |
9.812 |
21.4 |
7.2 |
7.2 |
30% |
98 |
1133 |
-23.42 |
27.33 |
||||||||
base |
Medupi** |
coal |
Generator |
Existing |
723 |
723 |
1 |
beyond 2050 |
9.812 |
21.4 |
7.2 |
7.2 |
30% |
98 |
1133 |
0 |
0 |
-23.42 |
27.33 |
||||||
base |
Tutuka* |
coal |
Generator |
Existing |
1755 |
585 |
3 |
2040 |
11.506 |
32.3 |
3.2 |
3.2 |
30% |
98 |
1133 |
-26.77565 |
29.35212 |
||||||||
base |
Tutuka** |
coal |
Generator |
Existing |
1755 |
585 |
3 |
2042 |
11.506 |
32.3 |
3.2 |
3.2 |
30% |
98 |
1133 |
0 |
0 |
-26.77565 |
29.35212 |
||||||
base |
Sere |
onwind |
Generator |
Existing |
100 |
2 |
50 |
2034 |
30% |
737 |
0 |
-31.5018 |
18.1143 |
||||||||||||
base |
Koeberg |
nuclear |
Generator |
Existing |
1854 |
930 |
2 |
2047 |
11.111 |
8.5 |
30% |
45 |
1187 |
-33.67366 |
18.42811 |
||||||||||
base |
Drakensberg |
PHS |
StorageUnit |
Existing |
1000 |
250 |
4 |
beyond 2050 |
30% |
0.0001 |
222 |
73.7% |
4 |
250 |
21.7 |
-28.56283 |
29.08275 |
||||||||
base |
Ingula |
PHS |
StorageUnit |
Existing |
1332 |
333 |
4 |
beyond 2050 |
30% |
0.0002 |
2796 |
78.0% |
4 |
333 |
27.4 |
-28.165 |
29.3512 |
||||||||
base |
Palmiet |
PHS |
StorageUnit |
Existing |
400 |
200 |
2 |
beyond 2050 |
30% |
0.0003 |
222 |
77.9% |
2 |
200 |
10 |
-34.19722 |
18.97361 |
||||||||
base |
Gariep |
hydro |
Generator |
Existing |
360 |
90 |
4 |
beyond 2050 |
30% |
350 |
0 |
-30.62396 |
25.50403 |
||||||||||||
base |
Vanderkloof |
hydro |
Generator |
Existing |
240 |
120 |
2 |
beyond 2050 |
30% |
350 |
0 |
-29.99337 |
24.73384 |
||||||||||||
base |
Acacia |
diesel |
Generator |
Existing |
171 |
57 |
3 |
2026 |
11.519 |
284.4 |
3.4 |
3.4 |
30% |
3 |
196 |
-33.88408 |
18.53361 |
||||||||
base |
Ankerlig |
diesel |
Generator |
Existing |
1332 |
148 |
9 |
2039 |
11.519 |
263.4 |
9 |
9 |
30% |
3 |
196 |
-33.592 |
18.4607 |
||||||||
base |
Gourikwa |
diesel |
Generator |
Existing |
740 |
148 |
5 |
2038 |
11.519 |
263.4 |
9 |
9 |
30% |
3 |
196 |
-34.16526 |
21.96077 |
||||||||
base |
PortRex |
diesel |
Generator |
Existing |
171 |
57 |
3 |
2026 |
11.519 |
284.4 |
3.4 |
3.4 |
30% |
3 |
196 |
-33.02739 |
27.88382 |
existing_non-eskom: Gives the capacity of conventional and non-conventional non-eskom generators, decommissioning rates,
Power Station Name |
Grouping |
Carrier |
Type |
Status |
Capacity (MW) |
Unit size (MW) |
Number units |
Future Commissioning Date |
Decommissioning Date |
Heat Rate (GJ/MWh) |
Fuel Price (R/GJ) |
Max Ramp Up (MW/min) |
Max Ramp Down (MW/min) |
Min Stable Level (%) |
Variable O&M Cost (R/MWh) |
Fixed O&M Cost (R/kW/yr) |
Pump Efficiency (%) |
Pump Units |
Pump Load per unit (MW) |
Pumped Storage - Max Storage (GWh) |
CSP Storage (hours) |
GPS Latitude |
GPS Longitude |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
base |
Aries Solar Energy Facility |
REIPPPP_BW1 |
solar |
Generator |
Existing |
9.65 |
2039 |
0% |
3649 |
0 |
-29.35015 |
21.15396 |
||||||||||||
base |
Cookhouse Wind Farm |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
135.8 |
2034 |
0% |
1513 |
0 |
-32.74606365 |
25.80701715 |
||||||||||||
base |
Dassieklip Wind Energy Facility |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
27 |
2034 |
0% |
1513 |
0 |
-34.23237 |
19.42878 |
||||||||||||
base |
De Aar Solar Power |
REIPPPP_BW1 |
solar |
Generator |
Existing |
45.6 |
2039 |
0% |
3649 |
0 |
-30.65995 |
24.01981 |
||||||||||||
base |
Dorper Wind Farm |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
97.53 |
2034 |
0% |
1513 |
0 |
-31.39628175 |
26.35379497 |
||||||||||||
base |
Greefspan PV Power Plant |
REIPPPP_BW1 |
solar |
Generator |
Existing |
9.9 |
2039 |
0% |
3649 |
0 |
-29.11513585 |
23.7490966 |
||||||||||||
base |
Herbert PV Power Plant |
REIPPPP_BW1 |
solar |
Generator |
Existing |
19.9 |
2039 |
0% |
3649 |
0 |
-29.11513585 |
23.7490966 |
||||||||||||
base |
Jeffreys Bay Wind Farm |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
135.11 |
2034 |
0% |
1513 |
0 |
-34.05048675 |
24.90607333 |
||||||||||||
base |
Kalkbult |
REIPPPP_BW1 |
solar |
Generator |
Existing |
72.4 |
2039 |
0% |
3649 |
0 |
-30.43789782 |
24.47044094 |
||||||||||||
base |
Kaxu Solar One |
REIPPPP_BW1 |
CSP |
Generator |
Existing |
100 |
2045 |
0% |
3554 |
0 |
3 |
-28.5252 |
19.3535 |
|||||||||||
base |
Khi Solar One |
REIPPPP_BW1 |
CSP |
Generator |
Existing |
50 |
2045 |
0% |
3554 |
0 |
6 |
-28.3214 |
21.439 |
|||||||||||
base |
Konkoonsies Solar Energy Facility |
REIPPPP_BW1 |
solar |
Generator |
Existing |
9.65 |
2039 |
0% |
3649 |
0 |
-29.16209115 |
19.38626431 |
||||||||||||
base |
Kouga Wind Farm |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
77.7 |
2034 |
0% |
1513 |
0 |
-34.00160661 |
24.74162863 |
||||||||||||
base |
Lesedi Power Company |
REIPPPP_BW1 |
solar |
Generator |
Existing |
64 |
2039 |
0% |
3649 |
0 |
-28.30952211 |
23.10406337 |
||||||||||||
base |
Letsatsi Power Company |
REIPPPP_BW1 |
solar |
Generator |
Existing |
64 |
2039 |
0% |
3649 |
0 |
-29.11213617 |
26.21566471 |
||||||||||||
base |
Metrowind Van Stadens Wind Farm |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
27 |
2034 |
0% |
1513 |
0 |
-33.80478499 |
25.49049171 |
||||||||||||
base |
Mulilo Renewable Energy Solar PV De Aar |
REIPPPP_BW1 |
solar |
Generator |
Existing |
10 |
2039 |
0% |
3649 |
0 |
-30.65995 |
24.01981 |
||||||||||||
base |
Mulilo Renewable Energy Solar PV Prieska |
REIPPPP_BW1 |
solar |
Generator |
Existing |
19.12 |
2039 |
0% |
3649 |
0 |
-29.96469912 |
22.33943836 |
||||||||||||
base |
Nobelsfontein Phase 1 |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
73.8 |
2034 |
0% |
1513 |
0 |
-31.42224223 |
23.11492014 |
||||||||||||
base |
REISA |
REIPPPP_BW1 |
solar |
Generator |
Existing |
75 |
2039 |
0% |
3649 |
0 |
-27.75808649 |
23.01589583 |
||||||||||||
base |
RustMo1 Solar Farm |
REIPPPP_BW1 |
solar |
Generator |
Existing |
6.93 |
2039 |
0% |
3649 |
0 |
-25.65326661 |
27.24975906 |
||||||||||||
base |
Droogfontein Solar Power |
REIPPPP_BW1 |
solar |
Generator |
Existing |
45.4 |
2039 |
0% |
3649 |
0 |
-28.72506215 |
24.751701 |
||||||||||||
base |
Slimsun Swartland Solar Park |
REIPPPP_BW1 |
solar |
Generator |
Existing |
5 |
2039 |
0% |
3649 |
0 |
-33.4578 |
18.72332 |
||||||||||||
base |
Solar Capital De Aar |
REIPPPP_BW1 |
solar |
Generator |
Existing |
75 |
2039 |
0% |
3649 |
0 |
-30.65995 |
24.01981 |
||||||||||||
base |
Soutpan Solar Park |
REIPPPP_BW1 |
solar |
Generator |
Existing |
27.94 |
2039 |
0% |
3649 |
0 |
-23.36940101 |
29.32179917 |
||||||||||||
base |
Touwsrivier Project |
REIPPPP_BW1 |
solar |
Generator |
Existing |
36 |
2039 |
0% |
3649 |
0 |
-33.33942927 |
20.02925811 |
||||||||||||
base |
Umoya Energy Wind Farm |
REIPPPP_BW1 |
onwind |
Generator |
Existing |
65.4 |
2034 |
0% |
1513 |
0 |
-33.02855397 |
18.30753655 |
||||||||||||
base |
Witkop Solar Park |
REIPPPP_BW1 |
solar |
Generator |
Existing |
29.68 |
2039 |
0% |
3649 |
0 |
-23.90234452 |
29.45076171 |
||||||||||||
base |
Amakhala Emoyeni |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
131.05 |
2037 |
0% |
1186 |
0 |
-32.68783624 |
26.10644083 |
||||||||||||
base |
Aurora Wind Power |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
90.82 |
2037 |
0% |
1186 |
0 |
-32.90788192 |
17.99584671 |
||||||||||||
base |
Aurora_Rietvlei Solar Power |
REIPPPP_BW2 |
solar |
Generator |
Existing |
8.9 |
2042 |
0% |
2176 |
0 |
-32.70958327 |
18.48538198 |
||||||||||||
base |
Bokpoort CSP project |
REIPPPP_BW2 |
CSP |
Generator |
Existing |
50 |
2048 |
0% |
3324 |
0 |
9 |
-28.87785503 |
21.91997588 |
|||||||||||
base |
Boshoff Solar Park |
REIPPPP_BW2 |
solar |
Generator |
Existing |
57 |
2042 |
0% |
2176 |
0 |
-28.53924889 |
25.21310591 |
||||||||||||
base |
Chaba Wind Farm |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
21 |
2036 |
0% |
1186 |
0 |
-32.58791094 |
27.8791875 |
||||||||||||
base |
Dreunberg |
REIPPPP_BW2 |
solar |
Generator |
Existing |
69.6 |
2042 |
0% |
2176 |
0 |
-30.99735285 |
26.3301982 |
||||||||||||
base |
Gouda Wind Project |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
135.5 |
2037 |
0% |
1186 |
0 |
-33.29437161 |
19.04399843 |
||||||||||||
base |
Grassridge Wind Farm |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
59.8 |
2037 |
0% |
1186 |
0 |
-33.79566844 |
25.67222108 |
||||||||||||
base |
Jasper Power Company |
REIPPPP_BW2 |
solar |
Generator |
Existing |
75 |
2042 |
0% |
2176 |
0 |
-28.30952211 |
23.10406337 |
||||||||||||
base |
Linde |
REIPPPP_BW2 |
solar |
Generator |
Existing |
36.8 |
2042 |
0% |
2176 |
0 |
-31.04520663 |
24.44183386 |
||||||||||||
base |
Neusberg Hydro Electrical Project |
REIPPPP_BW2 |
hydro |
Generator |
Existing |
10 |
beyond 2050 |
0% |
1363 |
0 |
-28.75269659 |
20.5335003 |
||||||||||||
base |
Sishen Solar Facility |
REIPPPP_BW2 |
solar |
Generator |
Existing |
74 |
2042 |
0% |
2176 |
0 |
-27.75808649 |
23.01589583 |
||||||||||||
base |
Solar Capital De Aar 3 |
REIPPPP_BW2 |
solar |
Generator |
Existing |
75 |
2042 |
0% |
2176 |
0 |
-30.65995 |
24.01981 |
||||||||||||
base |
Stortemelk Hydro |
REIPPPP_BW2 |
hydro |
Generator |
Existing |
4.22 |
beyond 2050 |
0% |
1363 |
0 |
-28.51415415 |
28.41014382 |
||||||||||||
base |
Tsitsikamma Community Wind Farm |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
93.68 |
2037 |
0% |
1186 |
0 |
-34.01510678 |
24.34462169 |
||||||||||||
base |
Upington Airport |
REIPPPP_BW2 |
solar |
Generator |
Existing |
8.9 |
2042 |
0% |
2176 |
0 |
-28.41492673 |
21.2219053 |
||||||||||||
base |
Vredendal Solar Park |
REIPPPP_BW2 |
solar |
Generator |
Existing |
8.8 |
2042 |
0% |
2176 |
0 |
-31.65563733 |
18.5161484 |
||||||||||||
base |
Waainek Wind Farm |
REIPPPP_BW2 |
onwind |
Generator |
Existing |
23.28 |
2037 |
0% |
1186 |
0 |
-33.30901038 |
26.53167687 |
||||||||||||
base |
!XiNa Solar One |
REIPPPP_BW3 |
CSP |
Generator |
Existing |
100 |
2049 |
0% |
3114 |
0 |
6 |
-29.16209115 |
19.38626431 |
|||||||||||
base |
Adams Solar PV 2 |
REIPPPP_BW3 |
solar |
Generator |
Existing |
75 |
2043 |
0% |
2176 |
0 |
-27.20248968 |
22.84678257 |
||||||||||||
base |
ENERGY Joburg Landfill Gas to Electircity Project |
REIPPPP_BW3 |
biomass |
Generator |
Existing |
7.56 |
2049 |
0 |
0% |
1109 |
0 |
-26.19495424 |
28.0325284 |
|||||||||||
base |
Karoshoek Solar One |
REIPPPP_BW3 |
CSP |
Generator |
Existing |
100 |
2049 |
0% |
3114 |
0 |
6 |
-28.41492673 |
21.2219053 |
|||||||||||
base |
Khobab Wind Farm |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
137.74 |
2038 |
0% |
868 |
0 |
-30.91810861 |
19.44104346 |
||||||||||||
base |
Loeriesfontein 2 Wind Farm |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
138.23 |
2038 |
0% |
868 |
0 |
-30.91810861 |
19.44104346 |
||||||||||||
base |
Longyuan Mulilo De Aar Maanhaarberg Wind Energy Facility |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
96.48 |
2038 |
0% |
868 |
0 |
-30.65995 |
24.01981 |
||||||||||||
base |
Longyuan Mulilo Green Energy De Aar 2 North Wind Energy Facility |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
138.96 |
2038 |
0% |
868 |
0 |
-30.65995 |
24.01981 |
||||||||||||
base |
Mkuze |
REIPPPP_BW3 |
biomass |
Generator |
Planned |
16.5 |
32 |
beyond 2050 |
1650 |
0% |
1500 |
0 |
6 |
4 |
-27.61803715 |
32.03451293 |
||||||||
base |
Mulilo Prieska PV |
REIPPPP_BW3 |
solar |
Generator |
Existing |
75 |
2043 |
0% |
1165 |
0 |
-29.96469912 |
22.33943836 |
||||||||||||
base |
Mulilo Sonnedix Prieska PV |
REIPPPP_BW3 |
solar |
Generator |
Existing |
75 |
2043 |
0% |
1165 |
0 |
-29.96469912 |
22.33943836 |
||||||||||||
base |
Nojoli Wind Farm |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
86.6 |
2038 |
0% |
868 |
0 |
-32.74606365 |
25.80701715 |
||||||||||||
base |
Noupoort Wind Farm |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
79.05 |
2038 |
0% |
868 |
0 |
-31.18385097 |
24.94597311 |
||||||||||||
base |
Paleisheuwel |
REIPPPP_BW3 |
solar |
Generator |
Existing |
75 |
2043 |
0% |
1165 |
0 |
-32.19669208 |
18.89502901 |
||||||||||||
base |
Pulida Solar Park |
REIPPPP_BW3 |
solar |
Generator |
Existing |
75 |
2043 |
0% |
1165 |
0 |
-29.13329593 |
24.79880592 |
||||||||||||
base |
Red Cap Gibson Bay |
REIPPPP_BW3 |
onwind |
Generator |
Existing |
108.25 |
2038 |
0% |
868 |
0 |
-34.00160661 |
24.74162863 |
||||||||||||
base |
Tom Burke Solar Park |
REIPPPP_BW3 |
solar |
Generator |
Existing |
60 |
2043 |
0% |
1165 |
0 |
-23.67193834 |
27.63573491 |
||||||||||||
base |
Kathu Solar Park |
REIPPPP_BW3.5 |
CSP |
Generator |
Existing |
100 |
beyond 2050 |
0% |
2902 |
0 |
6 |
-27.75808649 |
23.01589583 |
|||||||||||
base |
Redstone Solar Thermal Power Plant |
REIPPPP_BW3.5 |
CSP |
Generator |
Under construction |
100 |
2024 |
beyond 2050 |
0% |
2902 |
0 |
9 |
-28.30952211 |
23.10406337 |
||||||||||
base |
Aggeneys Solar |
REIPPPP_BW4 |
solar |
Generator |
Existing |
40 |
2046 |
0% |
872 |
0 |
-29.22015953 |
18.9152031 |
||||||||||||
base |
Boikanyo Solar |
REIPPPP_BW4 |
solar |
Generator |
Existing |
55 |
2046 |
0% |
872 |
0 |
-29.11513585 |
23.7490966 |
||||||||||||
base |
Bokamoso |
REIPPPP_BW4 |
solar |
Generator |
Existing |
67.9 |
2046 |
0% |
872 |
0 |
-26.85400239 |
26.64211071 |
||||||||||||
base |
Copperton Windfarm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
102 |
2041 |
0% |
687 |
0 |
-29.96469912 |
22.33943836 |
||||||||||||
base |
De Wildt |
REIPPPP_BW4 |
solar |
Generator |
Existing |
50 |
2046 |
0% |
872 |
0 |
-25.60966873 |
27.80765416 |
||||||||||||
base |
Dyason’s Klip 1 |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-28.41492673 |
21.2219053 |
||||||||||||
base |
Dyason’s Klip 2 |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-28.41492673 |
21.2219053 |
||||||||||||
base |
Excelsior Wind Energy Facility |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
31.9 |
2041 |
0% |
687 |
0 |
-34.02467796 |
20.4318549 |
||||||||||||
base |
Garob Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
135.93 |
2041 |
0% |
687 |
0 |
-29.96469912 |
22.33943836 |
||||||||||||
base |
Golden Valley Wind |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
117.72 |
2041 |
0% |
687 |
0 |
-32.74606365 |
25.80701715 |
||||||||||||
base |
Kangnas Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
136.7 |
2041 |
0% |
687 |
0 |
-29.66569573 |
17.88776436 |
||||||||||||
base |
Konkoonsies II Solar PV Facility |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-29.16209115 |
19.38626431 |
||||||||||||
base |
Kruisvallei Hydro |
REIPPPP_BW4 |
hydro |
Generator |
Existing |
3.8 |
beyond 2050 |
0% |
1240 |
0 |
-28.24250307 |
28.30768328 |
||||||||||||
base |
Matla A Bokone Solar |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-28.72506215 |
24.751701 |
||||||||||||
base |
Ngodwana Energy |
REIPPPP_BW4 |
biomass |
Generator |
Existing |
25 |
32 |
beyond 2050 |
1650 |
0% |
1500 |
0 |
6 |
4 |
-25.48089837 |
30.97430484 |
||||||||
base |
Nxuba Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
138.9 |
2041 |
0% |
687 |
0 |
-32.74606365 |
25.80701715 |
||||||||||||
base |
Oyster Bay Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
140 |
2041 |
0% |
687 |
0 |
-34.00160661 |
24.74162863 |
||||||||||||
base |
Perdekraal East Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
107.76 |
2041 |
0% |
687 |
0 |
-33.33942927 |
20.02925811 |
||||||||||||
base |
Roggeveld Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
140 |
2041 |
0% |
687 |
0 |
-32.40945174 |
20.66983649 |
||||||||||||
base |
Sirius Solar PV Project One |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-28.41492673 |
21.2219053 |
||||||||||||
base |
Soetwater Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Under construction |
139.4 |
2024 |
2042 |
0% |
687 |
0 |
-32.40945174 |
20.66983649 |
|||||||||||
base |
Solar Capital Orange |
REIPPPP_BW4 |
solar |
Generator |
Under construction |
75 |
2023 |
2047 |
0% |
872 |
0 |
-30.91810861 |
19.44104346 |
|||||||||||
base |
The Karusa Wind Farm |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
139.8 |
2046 |
0% |
687 |
0 |
-32.40945174 |
20.66983649 |
||||||||||||
base |
Waterloo Solar Park |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-26.93816488 |
24.70485455 |
||||||||||||
base |
Wesley Ciskei |
REIPPPP_BW4 |
onwind |
Generator |
Existing |
32.7 |
2041 |
0% |
687 |
0 |
-33.28239705 |
27.4298131 |
||||||||||||
base |
Zeerust |
REIPPPP_BW4 |
solar |
Generator |
Existing |
75 |
2046 |
0% |
872 |
0 |
-25.23658001 |
26.08241936 |
||||||||||||
base |
Kelvin |
other |
coal |
Generator |
Existing |
160 |
2027 |
12.372 |
15.6 |
0.5 |
0.5 |
30% |
80 |
0 |
-26.658 |
28.1138 |
||||||||
base |
Sasol SSF |
other |
coal |
Generator |
Existing |
600 |
beyond 2050 |
12.372 |
15.6 |
0.5 |
0.5 |
0% |
900 |
0 |
-26.5036 |
29.1803 |
||||||||
base |
Avon |
other |
diesel |
Generator |
Existing |
670 |
167.5 |
4 |
2046 |
11.519 |
263.4 |
11 |
11 |
0% |
3 |
169 |
-29.251 |
31.0941 |
||||||
base |
Dedisa |
other |
diesel |
Generator |
Existing |
335 |
167.5 |
2 |
2046 |
11.519 |
263.4 |
11 |
11 |
0% |
3 |
169 |
-33.4433 |
25.4022 |
||||||
base |
Sasol Infrach Engines |
other |
gas |
Generator |
Existing |
175 |
9.7 |
18 |
beyond 2050 |
7.6 |
75 |
8 |
8 |
30% |
950 |
0 |
-26.8102 |
27.8277 |
||||||
base |
Sasol OCGT |
other |
gas |
Generator |
Existing |
250 |
50 |
5 |
beyond 2050 |
11.519 |
75 |
2 |
2 |
0% |
950 |
0 |
-26.8102 |
27.8277 |
||||||
base |
CahoraBassa |
other |
hydro-import |
Generator |
Existing |
1764 |
250 |
6 |
beyond 2050 |
0% |
300 |
0 |
||||||||||||
base |
ColleyWobbles |
other |
hydro |
Generator |
Existing |
65 |
65 |
1 |
beyond 2050 |
0% |
300 |
0 |
-32.05 |
28.58333 |
||||||||||
base |
Mondi |
other |
biomass |
Generator |
Existing |
120 |
30 |
4 |
beyond 2050 |
0.5 |
0.5 |
30% |
500 |
0 |
||||||||||
base |
Sappi |
other |
biomass |
Generator |
Existing |
144 |
36 |
4 |
beyond 2050 |
0.5 |
0.5 |
30% |
500 |
0 |
-25.3447 |
30.394 |
||||||||
base |
Steenbras |
other |
PHS |
StorageUnit |
Existing |
180 |
45 |
4 |
beyond 2050 |
0% |
300 |
222 |
72% |
4 |
45 |
2.7 |
-34.153 |
18.9 |
new_build_limits: Gives the max_installed_limit and min_installed_limit in MW assumed for a scenario for all conventional and non-conventional
carriers for each year in the planning horizon. A max_installed_limit is given as `0`for a given year for a carrier implies that the there is no new
build for that particilar year for the carrier.
scenario |
parameter |
carrier (MW) |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
2026 |
2027 |
2028 |
2029 |
2030 |
2031 |
2032 |
2033 |
2034 |
2035 |
2036 |
2037 |
2038 |
2039 |
2040 |
2041 |
2042 |
2043 |
2044 |
2045 |
2046 |
2047 |
2048 |
2049 |
2050 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
base |
max_installed_limit |
solar |
0 |
0 |
||||||||||||||||||||||||||||||
base |
max_installed_limit |
onwind |
0 |
0 |
||||||||||||||||||||||||||||||
base |
max_installed_limit |
CCGT |
0 |
0 |
||||||||||||||||||||||||||||||
base |
max_installed_limit |
OCGT |
0 |
0 |
||||||||||||||||||||||||||||||
base |
max_installed_limit |
biomass |
0 |
0 |
||||||||||||||||||||||||||||||
base |
max_installed_limit |
coal |
0 |
0 |
||||||||||||||||||||||||||||||
base |
max_installed_limit |
nuclear |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
||||||||||||||||||||||||
base |
max_installed_limit |
hydro-import |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
max_installed_limit |
PHS |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
base |
max_installed_limit |
battery |
0 |
0 |
0 |
|||||||||||||||||||||||||||||
base |
min_installed_limit |
solar |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
onwind |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
CCGT |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
OCGT |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
coal |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
nuclear |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
hydro-import |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
PHS |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
base |
min_installed_limit |
battery |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
projected_parameters:
scenario |
parameter |
unit |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
2026 |
2027 |
2028 |
2029 |
2030 |
2031 |
2032 |
2033 |
2034 |
2035 |
2036 |
2037 |
2038 |
2039 |
2040 |
2041 |
2042 |
2043 |
2044 |
2045 |
2046 |
2047 |
2048 |
2049 |
2050 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ambitions |
annual_demand |
TWh/yr |
240 |
240 |
242 |
246 |
250 |
254 |
257 |
261 |
265 |
269 |
272 |
277 |
280 |
284 |
287 |
291 |
294 |
298 |
301 |
305 |
308 |
311 |
314 |
319 |
321 |
325 |
329 |
332 |
335 |
339 |
342 |
346 |
ambitions |
coal_fleet_EAF |
%/yr |
58.5% |
57.3% |
56.5% |
56.4% |
56.4% |
55.8% |
55.6% |
55.8% |
55.6% |
55.7% |
56.3% |
57.2% |
57.5% |
58.2% |
58.9% |
59.4% |
59.6% |
60.3% |
61.3% |
61.8% |
61.9% |
62.4% |
65.3% |
65.7% |
66.3% |
66.6% |
67.1% |
67.5% |
68.4% |
69.6% |
71.0% |
71.8% |
ambitions |
spinning_reserves |
MW |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
ambitions |
total_reserves |
MW |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
3400 |
ambitions |
reserve_margin_active |
TRUE/FALSE |
FALSE |
FALSE |
FALSE |
FALSE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
TRUE |
ambitions |
reserve_margin |
% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
10.0% |
costs:
